StorageCraft OneXafe 4417
Scale-Out Capacity Storage for Your Unstructured Data and Backup Targets
Arcserve has acquired Storagecraft. Please visit our Arcserve site for the latest Arcserve's products
60TB Free Storage Capacity *with purchase of fully populated 4417 (Does NOT require data protection software, replication, or encryption)*This promo is not a fully populated chassis, it is drives only promo pricing. Must purchase a full chassis to get the drives at the discount.
Get a Quote!
60TB Free Storage Capacity *with purchase of fully populated 4417 (Does NOT require data protection software, replication, or encryption)*This promo is not a fully populated chassis, it is drives only promo pricing. Must purchase a full chassis to get the drives at the discount.
Get a Quote!
Click here to jump to more pricing!
Overview:
Capacity Use Case Examples
- Unstructured data, file serving
- VMware clones
- Backup target for third party backup applications
- Video Surveillance
- Archive files (imaging/ video/ CAD/ PACs)
StorageCraft OneXafe is a converged scale-out storage solution, unifying enterprise-class data protection with storage management. OneXafe simplifies data management, while delivering enterprise-class features and providing a comprehensive primary and secondary storage solution.
StorageCraft is reimagining storage with OneXafe, a scale-out object-based storage solution that delivers the simplicity of NFS and SMB. OneXafe 4400 series delivers scale-out storage for TBs to PBs of unstructured data and backup targets. OneXafe’s unified architecture reduces management complexity and operational costs for storage. Additionally, it solves common storage pain points: complicated installation, cumbersome storage management, lack of data security and forklift upgrades. Without the shackles of a legacy storage architecture, StorageCraft’s clean-sheet approach combines OneXafe with OneSystem, an elegant multi-tenant cloud-based management service.
Powerful
- Scale-out object-based file system for non-disruptive capacity and performance expansion with zero re-configuration
- Inline deduplication and compression to maximizes storage utilization without performance impact
Simple
- Easily manage on-premises OneXafe in any location from any browser
- Multi-tenant cloud-based OneSystem provides real-time storage and health monitoring the state of every OneXafe node, installed disk drive, network, remotely replicated storage and more
Protected
- Always-on continuous data protection (CDP) capabilities, defined on per-share basis, enable fine-grained data recovery
- Real-time replication enables protection against multiple drive failures, ransomware, and disaster recovery
- Encryption at rest
Scale Storage Capacity, Easily
OneXafe’s scale-out architecture enables you to seamlessly add one drive at a time or multiple nodes in a cluster. OneXafe 4400 series delivers scale-out storage for large-scale unstructured data and backup targets. The OneXafe 4412 and 4417 models each combine the advantages of a distributed object-store with the accessibility of SMB and NFS protocols. OneXafe’s unified architecture reduces management complexity and operational costs for storage. It enables enterprise features such as global inline deduplication, compression, continuous data protection, and encryption at rest so organizations no longer have to allocate extraneous storage capacity dedicated solely for data protection.
Shake Off the Shackles
OneXafe 4400 series solves common pain points of storing unstructured data: complex installation, cumbersome storage management, limited capacity, lack of data security, and forklift upgrades. Without the shackles of a legacy storage architecture, StorageCraft’s clean-sheet approach combines OneXafe with an elegant multi-tenant cloud-based management service, the OneSystem.
A number of configurable options are available with OneXafe, whether it serves as storage only, or it comes with data protection options.
Capacity Storage
Configure to serve as secondary storage for your large-scale unstructured data and backup needs.
Integrated Data Protection
Eliminate data silos. Enable and configure enterprise-class data protection with scale-out storage, and enjoy simplified management.
Scale-Out Architecture
Storage on the Go
OneXafe employs a seamless scale-out architecture supporting one or multiple OneXafe nodes in a cluster and a single global file system. OneXafe’s architecture enables enterprise features such as global inline deduplication, compression, and continuous data protection, organizations no longer have to allocate extraneous storage capacity dedicated solely for data protection. As business storage requirements change, OneXafe is extremely agile; simply add any number of disk drives, at any time, and in any capacity granularity to meet your storage requirements. OneXafe grows the global storage pool without any configuration changes and without any application downtime. No more fork-lift upgrades.
Dynamic Growth
Bring your own drives. No RAID, no LUNs, no volumes. OneXafe delivers the flexibility for organizations to mix-and-match drive types (SATA, SAS) and capacity within the same OneXafe node and within a OneXafe cluster. In two minutes and without reconfiguration, OneXafe automatically pools the new storage within the existing global file system. No disruption to applications or users. No configuration settings to complete. No mouse clicks. No command line entries. No storage PhD required.
Features & Benefits:
Cloud-Based Management
OneSystem is a secure cloud-based management platform that proactively monitors, reports, and manages OneXafe in any location from any browser. Eliminating the need for dedicated servers and time-consuming software upgrades, simply login and gain the necessary insight into your storage infrastructure. Whether you have responsibility for a single location or multiple locations, OneSystem’s administration capabilities empower you to manage the entire storage infrastructure. Simply and securely.
Agile and Affordable
OneXafe’s agile ability to add storage at any time comes with the additional benefit of delivering significant cost savings. StorageCraft’s bring- your-own-drive philosophy treats drives as a commodity, enabling you to purchase drives at retail. Avoiding the 5-10x markup from legacy storage vendors quickly results in substantial cost savings compared to other storage solutions. Combined with OneXafe’s powerful inline deduplication and compression, storage utilization is maximized and waste is minimized.
Near-Zero Configuration
OneXafe can be installed and available to users in less than five minutes without reconfiguration – near-zero configuration. Simply insert at least three drives, plug in Ethernet, power, and turn it on. It’s that easy. OneXafe removes the burden of application downtime and configuration changes for nearly every storage management task, including replacing failed drives. To add more storage, simply add drives and the capacity is added to the same global file system. To increase availability or performance, additional OneXafe nodes can be added and automatically configured without interruption to applications or users. This provide organizations with nondisruptive scalability for their business.
Continuous Data Protection
OneXafe’s continuous data protection ensures that all of the stored information is fully protected. By taking continuous and unlimited snapshots of information that’s written to OneXafe, every file can be easily recovered in the event of data corruption, deletion, ransomware, or other errors. In fact, end users can recover their own information, simply by navigating through Mac Finder or Windows Explorer. No need to restore information from last night’s backup, simply browse and recover.
Always-On Information
With its real-time replication, information stored in a OneXafe cluster is fully protected. By avoiding legacy RAID technologies, OneXafe transparently replicates and intelligently distributes the data objects across multiple drives within a failure domain and protects against both drive and OneXafe failures. Additionally, with its advanced architecture, information is protected against an entire cluster failure when replication over wide-area distances is implemented. OneXafe grows with your data protection requirements without requiring costly downtime, reconfiguration, or forklift upgrades.
Integrated Data Protection
OneXafe offers organizations the option to enable and configure enterprise-class data protection with secondary storage. It provides flexible deployment to accommodate various workload requirements. At the same time, it significantly reduces costs associated with primary and secondary storage as well as data protection software. OneXafe removes the need for siloed solutions, minimizes costs incurred from both standalone hardware and software solutions, and eliminates redundancy in management.
Use Cases:
File Server Consolidation
OneXafe 4400 series deliver a highly scalable, available, and easily managed network-attached storage (NAS) solution designed to simplify storage management of unstructured data. With OneXafe’s continuous data protection, your data is resilient against ransomware or user errors, ensuring that the information is always recoverable.
Data Archival
OneXafe’s ability to scale capacity granularly makes it a snap to cost-effectively manage the explosive growth of data in healthcare, video surveillance, engineering, and other data intensive environments.
Disk-Based Backup Target
OneXafe 4400 series scale-out architecture provide a highly scalable, disk-based backup target for your virtualized as well as physical server environments--thus delivering pay-as-you-grow scalability with the convenience of near zero-configuration of storage management tasks.
Architecture:
At the core of OneXafe is a patented distributed object-based file system that delivers universal data access by providing NFS and SMB access to users and applications. Data protection services are directly integrated into OneXafe's distributed file system, delivering powerful backup and recovery, with a work flow optimized for simplified management. OneXafe tightly integrates with StorageCraft Cloud Services, with a single click it provides business continuity of data, network, and application recovery in StorageCraft's Cloud.
OneXafe's architecture is designed from the ground up and is a collection of interconnected, scalable, and easily manageable microservices that deliver robust data protection and storage access. It consists of three main components: Data Protection Services, Agents, and StorageCraft OneSystem. OneSystem is the management framework that orchestrates and manages the activities within Data Protection Services. The Data Protection Services deliver storage access and data protection procedures including backup, restore, replication, and storage. Agents are adapters for protecting physical servers and virtual machines (VMs) to deliver higher SLAs.
Specifications:
| Specifications | 4412 Mid-size Capacity | 4417 Large-size Capacity |
|---|---|---|
| System Input Requirements | 100-240 V AC, 10.7 – 4.2A max | |
| Power Supply | Dual output power 750W; output voltages +12V (75A), +5Vsb (4A) | |
| Weight (empty, no disks) | 73 lb. (33.1 kg) | |
| Space Requirements (W x H x D) | 19 x 3.4 x 28.1 in. (482 x 86.8 x 715.5 mm); 2 rack units | |
| Hard Drive Type | 3.5" SATA (6 Gb/s) / SAS (6 Gb/s and 12 Gb/s) | |
| Operating Temperature and Humidity | 10° C to 35°C (50°F to 95°F) | |
| Cooling | Six variable-speed fans | |
| File Service Protocols | SMB (1.0, 2.0, 2.1, 3.0); NFS v3 | |
| Gigabit Ethernet Ports | 4 x 10GbE BASE-T OR 4 x 10GbE SFP+ | |
| USB Ports | 2 x USB 3.0 (front) | |
| Remote Lights-Out Management | iDRAC via 1GbE port | |
| Electromagnetic Emission and Compatibility | FCC Class A, EN 55022 Class A, EN 61000-3-2/-3- 3, CISPR 22 Class A | |
| Drive Bays | Up to 12 x 3.5 in. (front) All drives are hot swappable |
Up to 12 x 3.5 in. (front) + 3 x 3.5 in. (mid) + 2 x 3.5 in. (rear) All drives are hot swappable |
| Max Raw Capacity | 144 TB (12 disks rated at 12 TB each) | 204 TB (17 disks rated at 12 TB each) |
| Form Factor | 2U | 2U |
OneXafe:
StorageCraft OneXafe is a converged data platform that unifies enterprise-class data protection with scale-out storage in an easy-to-use, configurable solution. For businesses looking to protect and manage their data in heterogeneous environments, OneXafe eliminates complexity and provides flexible deployment to accommodate various workload requirements. At the same time, it significantly reduces costs associated with primary and secondary storage as well as data protection software. By providing a converged solution, OneXafe removes the need for siloed point solutions and minimizes costs incurred from standalone hardware and software offerings.
At the core of OneXafe is a patented distributed object-based file system that delivers universal data access by providing NFS and SMB access to users and applications. Data protection services are directly integrated into the distributed object store, delivering powerful backup and recovery, with a work flow optimized for simplified management.
OneXafe tightly integrates with StorageCraft Cloud Services, with a single click it provides business continuity of data, network, and application recovery in StorageCraft's Cloud.
There are a number of configurable options available within OneXafe, from primary storage, to secondary storage, to enterprise-class data protection combined with secondary storage. It is seamlessly administered with OneSystem, our simple, intuitive, yet powerful management service. OneXafe enables ease of implementation for both powerful data protection and optimum scale-out storage.
Highlights
- Convergence of data protection with primary & secondary workloads
- Designed to break down the data silos in storage and data protection
- Improved management simplicity
- Reduced cost of ownership
- Greater visibility across workflows
Benefits
- Eliminate Operational Complexity
- Reduce Cost of Ownership
- Enable Powerful Data Protection
- Deliver Scale-Out Storage on the Go
- Provide 100% Business Continuity (with DRaaS)
Configuration
OneXafe includes a multi-purpose storage appliance that can be configured based on your business needs.
- Converged Secondary: Enterprise-class data protection enabled and configured with secondary storage, reducing management complexity and operational costs.
- High Performance Storage: Scalable storage for high performance unstructured data and backup targets. Can be configured to serve primary storage for virtual workloads, unstructured data, or secondary storage with high performance needs.
- Capacity Storage: Scalable storage for large scale unstructured data and backup targets. Can be configured to serve as secondary storage for your backup needs.
In the case of disaster, OneXafe ensures business continuity with a complete, orchestrated virtual failover to the cloud in one click, when used with our Cloud Services. OneXafe's tight integration with the cloud makes recovery of the entire infrastructure simple, quick, and seamless, while offering the highest service level agreements (SLAs) with one throat to choke.
Features and Benefits
Converged data platform
- Unify data protection and scale-out storage for management simplicity and reduced acquisition costs
Simplified licensing
- Reduce cost with simple site licensing model
Object-based distributed file system
- Scale non-disruptively with zero configuration:
- Add capacity granularly to accommodate dynamic growth
- Grow capacity on-demand with no upfront investments and no forklift upgrades
Inline deduplication & compression
- Achieve high data reduction rates resulting in smaller storage capacity footprint, reducing overall TCO
Continuous data protection
- Simple online recovery of previous versions of files from space-optimized snapshots
Encryption at rest
- Safeguard the data
Efficient multi-site replication
- Implement cost-effective DR across multiple sites with 100% data integrity
SLA-driven workflow
Optimize workflow for SLA-driven data protection lifecycle:
- Manage explosive growth in data and virtualized applications
- Set & forget policy for protection and management
- Global view of recovery points
- Single view to schedule/manage local backups, onsite/offsite replication, retention schedules, and DRaaS
- Proactive error detection and alerting
- Single workflow to protect and manage both physical and virtual infrastructures
- LA-oriented reporting and analytics
Reliable recovery & data integrity
- Best-in-class certified VSS integration for app-consistent data protection
- Automated, advanced reverification of backup images along with inflight verification ensures dependable backup images
- Smart retries, and self-healing repairs ensures service reliability
- Retained metadata for improved recovery experience
- Cold-file access and recovery
- PKI-based encrypted channel communication for ensuring data integrity
Instant recovery
- Recover in milliseconds using VirtualBoot intelligent read-ahead technology, irrespective of the VM size
- Recover files or folders in seconds and entire systems in minutes
- Direct recovery to primary store means no Virtual Storage Motion and no performance impact during recovery
Flexible recovery
Recover to dissimilar hardware or virtual environments:
- Ensures that recovery is timely & quick (v2v, p2p, v2p & p2v)
- Utilize resources at hand. No waiting for any specific resources
- Powerful host- and on-hand agent-based data protection, complete with physical and virtual system recovery
Integrated DRaaS
Ensure total business continuity with integrated DRaaS from StorageCraft:
- Orchestrated, one-click virtual failover
- Self-service portal with no 3rd party intervention during recovery
- Replication and disaster recovery as a service
- Seed and BMR drives, and web download
OneSystem:
Simplicity in Management

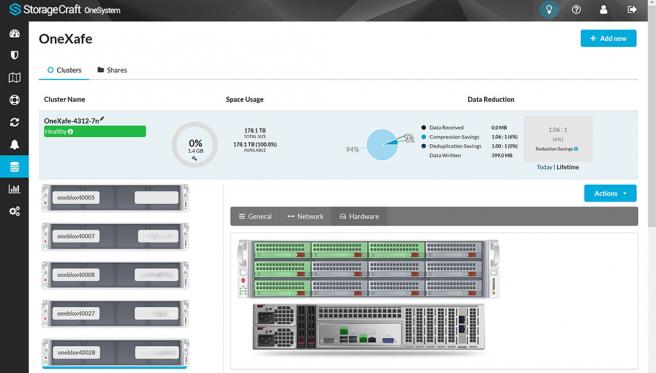

This cloud-based management service for ShadowXafe and OneXafe makes oversight powerful, simple, and intuitive.
Manage from Anywhere
With this intuitive OneSystem management service, get real-time monitoring, reporting, and visibility from any location.
Features and Benefits
Cloud-Based Management
Eliminate the need for dedicated servers and software upgrades. Manage your OneXafe or ShadowXafe from any location and from any web browser with this secure cloud-based management platform. Whether you are responsible for one location or many, OneSystem empowers you to manage the entire storage infrastructure, simply and securely.
Global Multi-Tenant Architecture
OneSystem was designed to support every OneXafe and ShadowXafe, regardless of geographic location. Securely manage multiple discrete organizations’ information. OneXafe or ShadowXafe is deployed on-premises so the information is closest to the application for performance, while OneSystem is cloud-based for scalability and for accessibility from any browser anywhere.
Continuous Monitoring
OneSystem continuously monitors the health and status of OneXafe and ShadowXafe so you can rest easy. OneSystem receives real-time updates about OneBlox hardware, software, and network connectivity--all the information that’s critical to supporting organizations’ data.
World-Class Proactive Support
Get peace of mind knowing Support is watching over every OneXafe and ShadowXafe deployment. By constantly monitoring, we often identify and solve storage challenges before customers realize there’s an issue. This proactive approach means we can rapidly address any application disruptions.
Global Reporting
The best storage management decisions are based on information. Get a global view into of your organization’s storage infrastructure, including reporting and trending of storage capacity, data reduction ratios, remote replication, and recovery point objectives.
Private OneSystem
Choose to use Private OneSystem, a hybrid solution offering OneXafe and ShadowXafe storage management deployed as a virtual machine within your data center while leveraging the same proactive cloud-based monitoring and support capabilities.
Documentation:
Download the StorageCraft OneSafe 4400 Series Data Sheet (PDF).
Pricing Notes:
- Pricing and product availability subject to change without notice.
